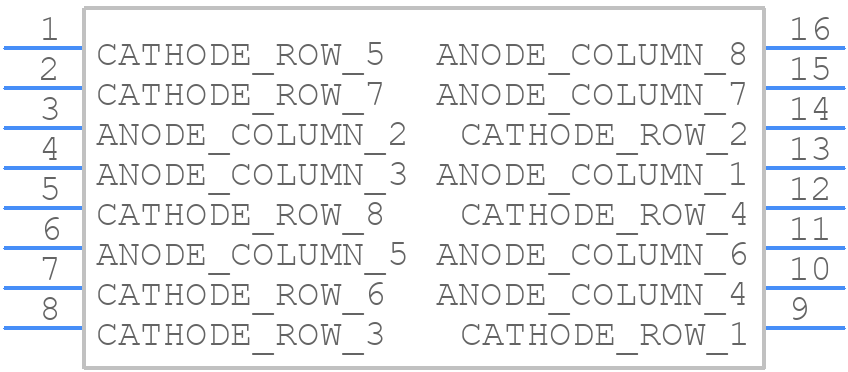

Symbol

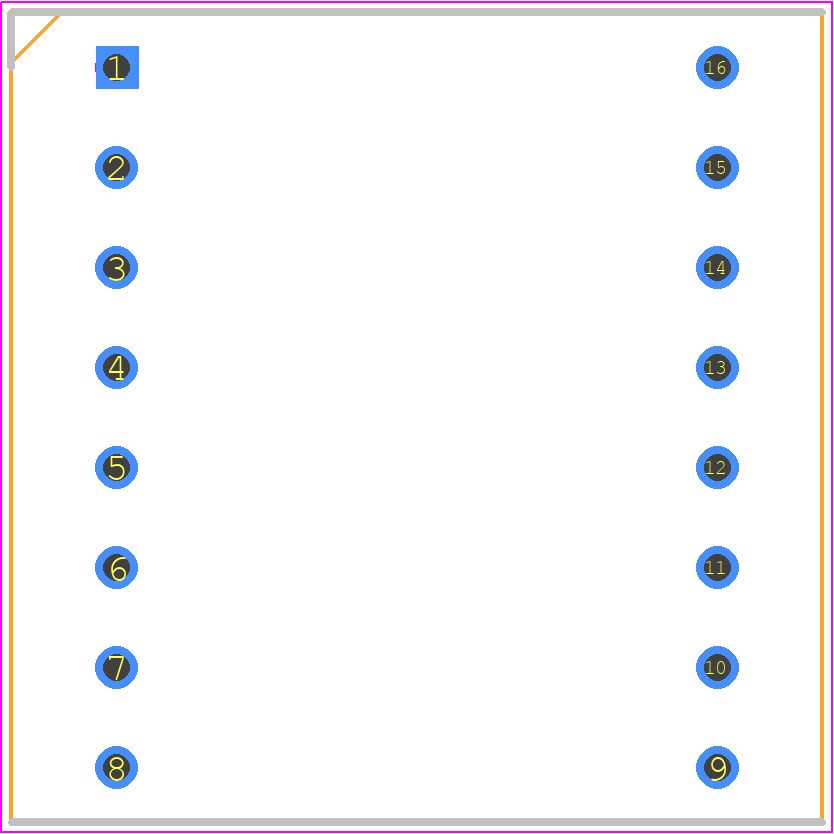

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MNA20SR092G
- Part Number MNA20SR092G
- Manufacturer Paralight
- Pin Count 16
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - MNA20SR092G
- Released Date Aug 6, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MNA20SR092G Details
-
Manufacturer Part Number:
MNA20SR092G
-
Manufacturer:
PARA LIGHT
Trust Checks
Expert Contribution
System Verified
Community Approved
MNA20SR092G Overview
Use the download button to access the MNA20SR092G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MNA20,
or try a keyword search, such as Telecom and Datacom Connectors
