MOLC-150-61-L-Q-LC - SAMTEC

Description: .050" FOURRAY™ Quad Row Terminal Strip, 200 Positions, Quad-Row, Through Hole

Download MOLC-150-61-L-Q-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MOLC-150-61-L-Q-LC - SAMTEC - PCB symbol
click to zoom
PCB Footprints

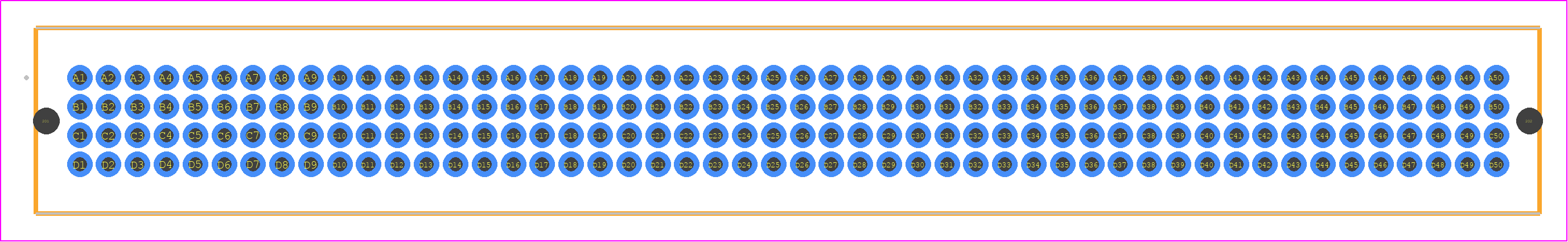

MOLC-150-61-L-Q-LC - SAMTEC PCB footprint - Other - Other - MOLC-150-YY-XX-Q-LC
click to zoom
3D Models
MOLC-150-61-L-Q-LC - SAMTEC - 3D model - Other - MOLC-150-YY-XX-Q-LC
click to zoom

MOLC-150-61-L-Q-LC Details

  • Manufacturer Part Number:

    MOLC-150-61-L-Q-LC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (15) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    200

  • UL Flammability Code:

    94V-0

MOLC-150-61-L-Q-LC Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the MOLC-150-61-L-Q-LC connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MOLC-150-61-L-Q-LC connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • The MOLC-150-61-L-Q-LC connector has an operating temperature range of -55°C to +125°C, making it suitable for most industrial and commercial applications.
  • Yes, the MOLC-150-61-L-Q-LC connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The MOLC-150-61-L-Q-LC connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not recommended for use in wet or submerged environments without proper sealing or protection.
