MOS2CT52R220J - KOA Speer

Description: e

Download MOS2CT52R220J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MOS2CT52R220J - KOA Speer - PCB symbol
click to zoom
PCB Footprints

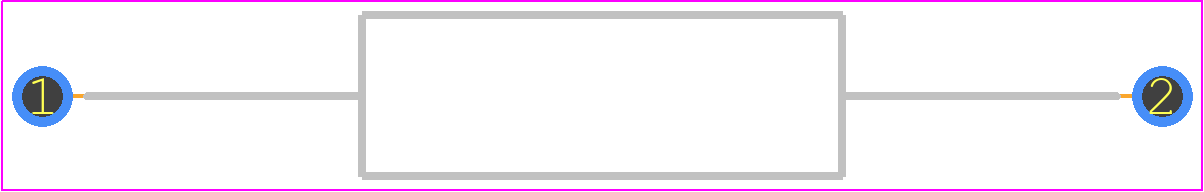

MOS2CT52R220J - KOA Speer PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - MOS2
click to zoom
3D Models
MOS2CT52R220J - KOA Speer - 3D model - Resistors, Axial Diameter Horizontal Mounting - MOS2
click to zoom

MOS2CT52R220J Details

  • Manufacturer Part Number:

    MOS2CT52R220J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    KOA Speer Electronics Inc

  • YTEOL:

    6

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Tubular

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    235 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    4 mm

  • Package Length:

    12 mm

  • Package Style:

    Axial

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    IEC60115-4

  • Resistance:

    22 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE FILM

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Finish:

    TIN COPPER

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    350 V

MOS2CT52R220J Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MOS2CT52R220J is 260°C (500°F) for 10 seconds or less, to prevent damage to the resistor.
  • Yes, the MOS2CT52R220J is a metal film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
  • The power rating of the MOS2CT52R220J decreases with increasing temperature. For example, at 70°C, the power rating is 0.75W, and at 100°C, it is 0.5W. Consult the datasheet for the derating curve.
  • Yes, the MOS2CT52R220J is AEC-Q200 qualified, which means it meets the stringent requirements for reliability and performance in automotive applications.
  • The MSL of the MOS2CT52R220J is 1, which means it can withstand exposure to moisture without damage, but it's still recommended to follow proper handling and storage procedures.
