The recommended land pattern for the MOS2CVTPA102J can be found in the KOA Speer Electronics Inc. application note AN1001, which provides guidelines for PCB layout and land pattern design.
The MOS2CVTPA102J has a thermal resistance of 35°C/W, and it is recommended to use a thermal pad or heat sink to dissipate heat. The application note AN1002 from KOA Speer Electronics Inc. provides guidelines for thermal management and heat sink design.
The MOS2CVTPA102J has an operating temperature range of -55°C to 150°C, but it is recommended to operate within the range of -40°C to 125°C for optimal performance and reliability.
The MOS2CVTPA102J is designed for low-frequency applications, and its performance may degrade at high frequencies. If you need to use it in a high-frequency application, you should consult with KOA Speer Electronics Inc. or perform thorough testing to ensure its suitability.
The MOS2CVTPA102J should be stored in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. It is recommended to store the devices in their original packaging or in a sealed bag to prevent moisture absorption.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MOS2CVTPA102J Overview

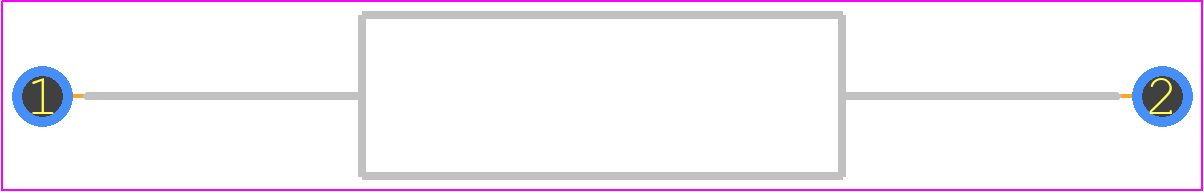

Use the download button to access the MOS2CVTPA102J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOS2C,
or try a keyword search, such as Metal Oxide Film Resistors
