MOS2CVTPA103J - KOA Speer

Description: Res Metal Oxide 10K Ohm 5% 2W ±300ppm/°C Conformal Coated RDL Automotive Ammo

Download MOS2CVTPA103J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MOS2CVTPA103J - KOA Speer - PCB symbol
click to zoom
PCB Footprints

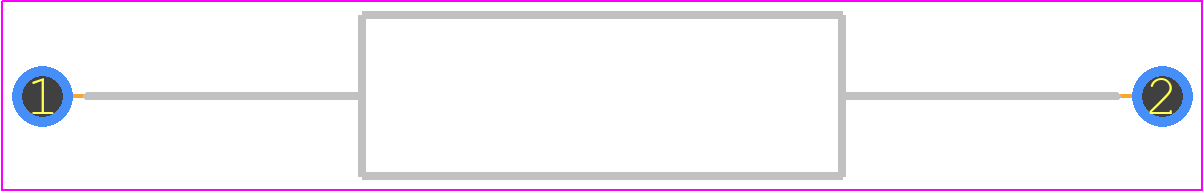

MOS2CVTPA103J - KOA Speer PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - MOS2
click to zoom
3D Models
MOS2CVTPA103J - KOA Speer - 3D model - Resistors, Axial Diameter Horizontal Mounting - MOS2
click to zoom

MOS2CVTPA103J Details

  • Manufacturer Part Number:

    MOS2CVTPA103J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    KOA Speer Electronics Inc

  • YTEOL:

    6

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Tubular

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    235 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    4 mm

  • Package Length:

    12 mm

  • Package Style:

    Axial

  • Packing Method:

    AMMO PACK

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    UL

  • Resistance:

    10000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Finish:

    TIN COPPER

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    350 V

MOS2CVTPA103J Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MOS2CVTPA103J can be found in the KOA Speer Electronics Inc. application note AN1001, which provides guidelines for PCB layout and land pattern design.
  • The MOS2CVTPA103J has a thermal resistance of 35°C/W, and it is recommended to use a thermal pad or a heat sink to dissipate heat. The application note AN1002 from KOA Speer Electronics Inc. provides more information on thermal management.
  • The MOS2CVTPA103J has an operating temperature range of -55°C to 150°C, but it is recommended to operate it within the range of -40°C to 125°C for optimal performance and reliability.
  • The MOS2CVTPA103J is designed for low-frequency applications, and its performance may degrade at high frequencies. If you need to use it in a high-frequency application, you should consult with KOA Speer Electronics Inc. or perform thorough testing to ensure its suitability.
  • To ensure the reliability of the MOS2CVTPA103J in a harsh environment, you should follow the recommended storage and handling procedures, and consider using conformal coating or potting to protect the device from moisture and contaminants.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOS2CVTPA103J Overview

Use the download button to access the MOS2CVTPA103J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOS2C, or try a keyword search, such as Metal Oxide Film Resistors
