MP-LD10-23B03R2 - Multicomp Pro

MP-LD10-23B03R2 Details

• Manufacturer Part Number:

  MP-LD10-23B03R2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

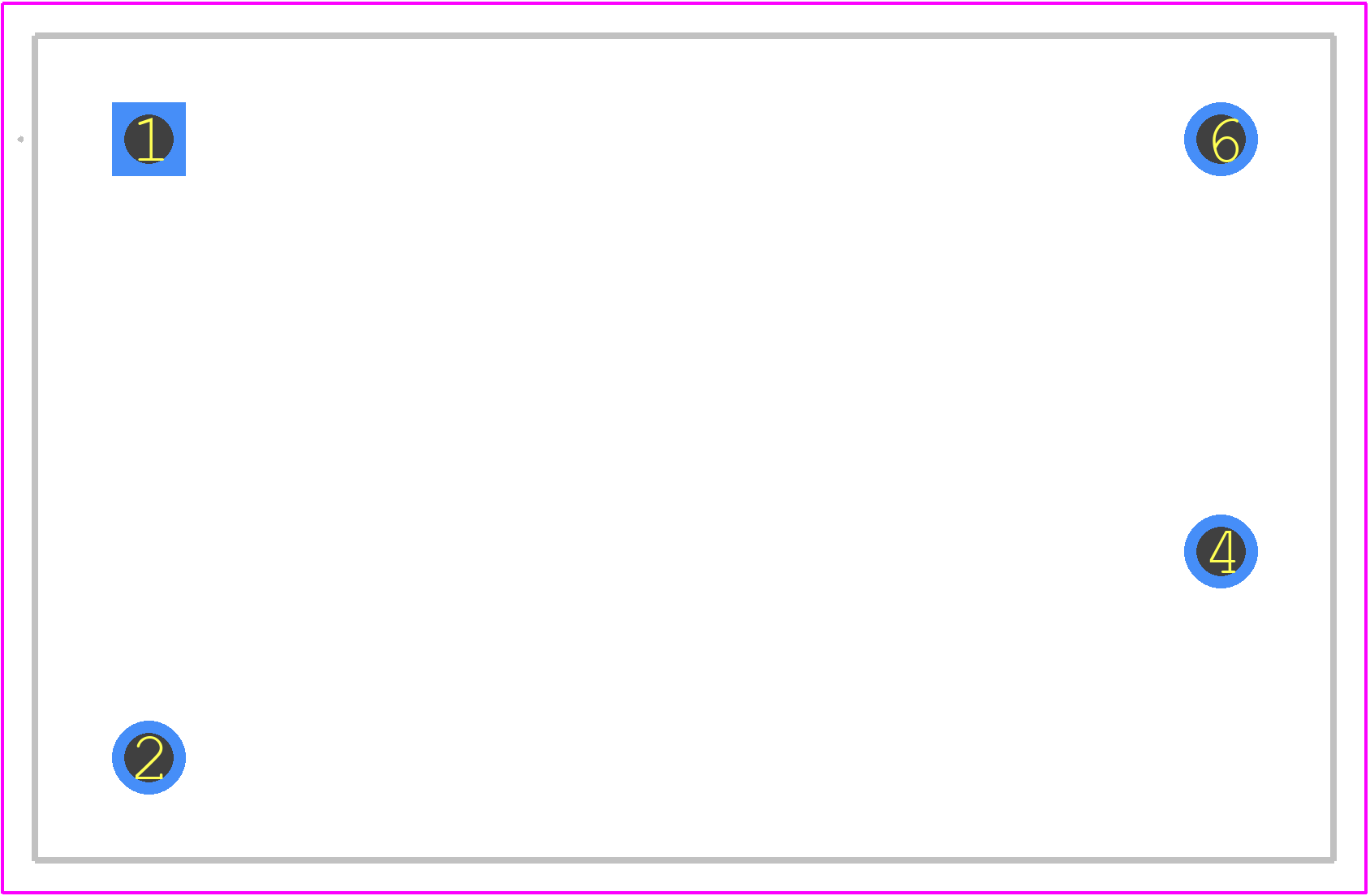

• Package Description:

  DIP-6/4 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  SPC Multicomp

• YTEOL:

  5

• Additional Feature:

  IT ALSO OPERATE WITH (100-430)VDC INPUT

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  IEC, EN, UL

• Efficiency (Main Output):

  74%

• Input Voltage-Max:

  305 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-PDIP-P4

• Length:

  40 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.6 A

• Output Voltage-Max:

  3.366 V

• Output Voltage-Min:

  3.234 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  SHORT CIRCUIT, OUTPUT OVER VOLTAGE, OUTPUT OVER CURRENT

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Screening Level:

  IEC/EN/UL 62368-1

• Seated Height-Max:

  21.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  8.6 W

• Trim/Adjustable Output:

  NO

• Width:

  25.4 mm
