A good PCB layout for the MP024GS-10 should prioritize thermal dissipation, minimize noise, and ensure proper decoupling. Place the device near the input capacitors, and use a solid ground plane to reduce EMI. Keep the output capacitors close to the output pins, and use a Kelvin connection for the output voltage sense pins.
To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitors have a low ESR, and the input capacitors have a high ripple current rating. Avoid using capacitors with high ESL, and add a small series resistor (e.g., 1-2 ohms) to the output capacitor if necessary.
While the datasheet specifies a maximum junction temperature of 125°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general guideline, keep the ambient temperature below 85°C to ensure reliable operation and minimize derating.
The MP024GS-10 is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. Ensure that the device is operated within its specified ratings, and follow the recommended PCB layout and component selection guidelines. Additionally, consider using automotive-grade components and following relevant industry standards (e.g., AEC-Q100).
To troubleshoot issues with the MP024GS-10, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and soldering. Use an oscilloscope to monitor the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP024GS-10 Overview

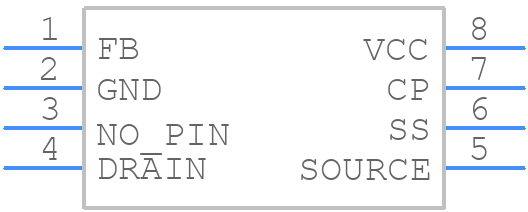

Use the download button to access the MP024GS-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP024,
or try a keyword search, such as Switching Regulator or Controllers
