A good PCB layout for the MP1495DJ-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Keep the input and output capacitors close to the device to minimize parasitic inductance. A 4-layer PCB with a solid ground plane is recommended.
To optimize the compensation network, start with the recommended values in the datasheet. Then, use simulation tools or empirical methods to fine-tune the compensation components (R1, R2, C1, and C2) for optimal stability and transient response. Consider the output capacitor's ESR and the input voltage's AC impedance when selecting the compensation components.
Exceeding the maximum TJ rating (150°C for the MP1495DJ-LF-Z) can lead to reduced lifespan, decreased performance, and even permanent damage to the device. Ensure proper thermal management, such as using a heat sink or thermal pad, to keep the junction temperature within the recommended range.
While the MP1495DJ-LF-Z is a high-performance device, it may not meet the specific requirements for high-reliability or automotive applications. Check the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation to ensure it meets the necessary standards for your application.
To ensure EMC, follow proper PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing loop areas. Additionally, consider using shielding, filtering, and decoupling capacitors to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP1495DJ-LF-Z Overview

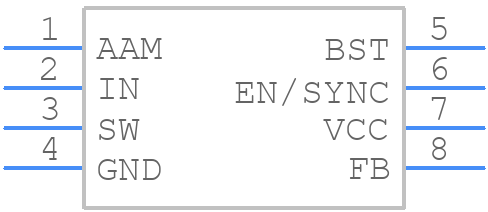

Use the download button to access the MP1495DJ-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP149,
or try a keyword search, such as Switching Regulator or Controllers
