MP18024HN-LF-Z - Monolithic Power Systems (MPS)

Description: Drives an N-Channel MOSFET Half Bridge  100V VBST Voltage Range  On-Chip Bootstrap Diode  Typical Propagation Delay of 20ns  Gate Drive Matching Of Less Than 5ns  Drives A 2.2nf Load with 15nm Rise Time and 12ns Fall Time at12v VDD  TTL-Compatible Input  Quiescent Current of Less Than 150A  UVLO for Both High Side and Low Side  SOIC8E Package

Download MP18024HN-LF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

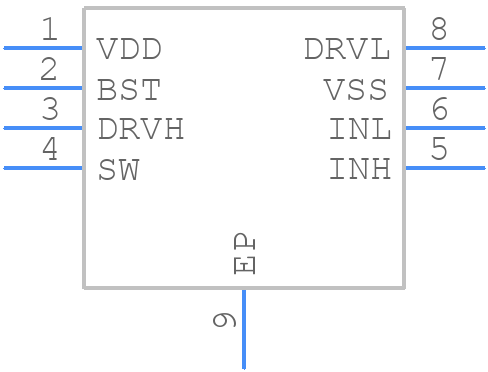

Symbol
MP18024HN-LF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom

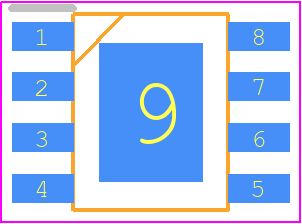

PCB Footprints
MP18024HN-LF-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8E
click to zoom
3D Models
MP18024HN-LF-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - SOIC8E
click to zoom

MP18024HN-LF-Z Details

  • Manufacturer Part Number:

    MP18024HN-LF-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.02 µs

  • Turn-on Time:

    0.02 µs

  • Width:

    3.9 mm

MP18024HN-LF-Z Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MP18024HN-LF-Z involves placing the input and output capacitors close to the IC, using wide traces for power and ground, and minimizing the loop area of the input and output currents to reduce EMI.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended output capacitor selection and placement guidelines, and to ensure that the output voltage is within the specified range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The MP18024HN-LF-Z is rated for operation from -40°C to +125°C, but the maximum ambient temperature range for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines and to ensure that the junction temperature remains within the specified range.
  • The power dissipation of the IC can be calculated using the formula: Pd = (Vin - Vout) x Iout. The junction temperature can be estimated using the thermal resistance (RθJA) and the power dissipation: Tj = Ta + (RθJA x Pd), where Ta is the ambient temperature.
  • The recommended input capacitor is a 10uF ceramic capacitor with an X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with an X7R or X5R dielectric. However, the specific capacitor selection may vary depending on the application and the desired performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP18024HN-LF-Z Overview

Use the download button to access the MP18024HN-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP180, or try a keyword search, such as MOSFET Drivers
