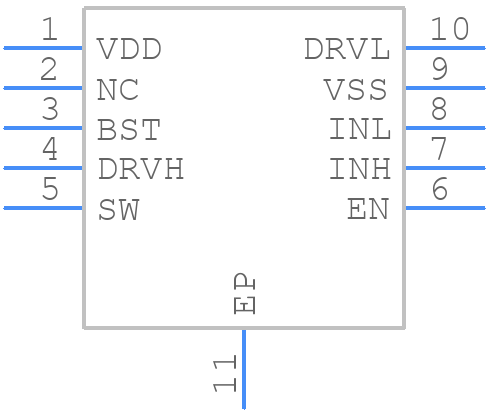

MP1907GQ-Z - Monolithic Power Systems (MPS)

MP1907GQ-Z Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A good PCB layout is crucial for the MP1907GQ-Z. Keep the input and output capacitors close to the IC, and use a solid ground plane to reduce noise. Avoid routing high-current traces near sensitive analog signals.
• How do I ensure stability and prevent oscillations?
  To ensure stability, make sure the output capacitor is within the recommended range (22uF to 47uF). Also, add a 1nF to 10nF capacitor between the FB pin and GND to filter out noise.
• What is the maximum input voltage that can be applied to the VIN pin?
  The maximum input voltage that can be applied to the VIN pin is 28V. Exceeding this voltage may damage the IC.
• Can I use the MP1907GQ-Z in a high-temperature environment?
  The MP1907GQ-Z is rated for operation up to 85°C. However, the IC's performance and reliability may degrade at higher temperatures. Consider using a heat sink or reducing the ambient temperature to ensure reliable operation.
• How do I calculate the output voltage of the MP1907GQ-Z?
  The output voltage (VOUT) is determined by the resistive divider network connected to the FB pin. Use the formula: VOUT = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
