A good PCB layout for the MP2002AGD-Z should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths.
To ensure stability, use a minimum output capacitance of 10uF, and ensure the output capacitor's ESR is less than 1 ohm. Also, keep the feedback resistors (RFBT and RFB) as close to the IC as possible, and use a low-ESR input capacitor (e.g., 10uF).
The maximum input voltage for the MP2002AGD-Z is 18V. Exceeding this voltage may damage the IC. It's recommended to add overvoltage protection (OVP) circuitry to prevent damage from voltage spikes or transients.
The output voltage (VOUT) can be calculated using the formula: VOUT = (RFBT / RFB) x 0.8V. For example, if RFBT = 10kΩ and RFB = 2kΩ, VOUT = (10kΩ / 2kΩ) x 0.8V = 4V.
The maximum output current of the MP2002AGD-Z is 2A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Ensure the IC is properly heatsinked and the output current is within the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2002AGD-Z Overview

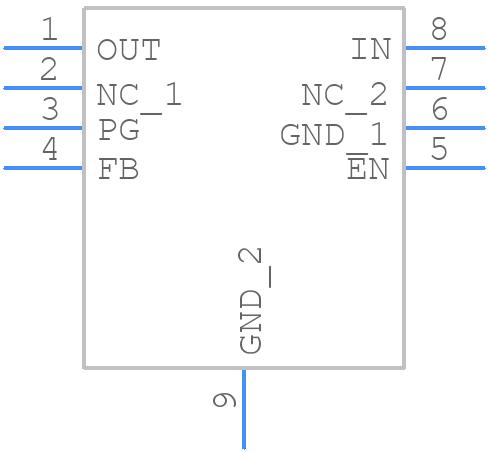

Use the download button to access the MP2002AGD-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP200,
or try a keyword search, such as Linear Regulator ICs
