MP2002DD-LF-P footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

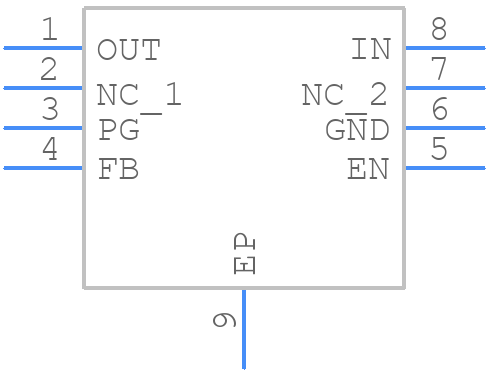

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP2002DD-LF-P
Part Number MP2002DD-LF-P
Manufacturer Monolithic Power Systems (MPS)
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - qfn
Released Date Sep 5, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MP2002DD-LF-P Details

Manufacturer Part Number:
MP2002DD-LF-P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
QFN-8
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
28 Weeks
Manufacturer:
Monolithic Power Systems
YTEOL:
3
Adjustability:
ADJUSTABLE
Dropout Voltage1-Nom:
0.29 V
JESD-30 Code:
R-XDSO-N8
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
125 °C
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
0.5 A
Output Voltage1-Max:
5 V
Output Voltage1-Min:
0.5 V
Package Body Material:
UNSPECIFIED
Package Code:
HTSON
Package Equivalence Code:
SOLCC8,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.05 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
2 mm

MP2002DD-LF-P Frequently Asked Questions (FAQs)

A good PCB layout for the MP2002DD-LF-P involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure the output capacitor has a low ESR (Equivalent Series Resistance) and the input capacitor has a high ripple current rating. A minimum output capacitance of 10uF is recommended.
The maximum input voltage for the MP2002DD-LF-P is 18V. Exceeding this voltage may damage the IC. It's recommended to add input voltage protection, such as a TVS diode, to prevent overvoltage conditions.
The output voltage of the MP2002DD-LF-P can be calculated using the following formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the feedback resistors. The output voltage range is 0.8V to 15V.
The maximum output current of the MP2002DD-LF-P is 2A. However, the output current may be limited by the input voltage, output voltage, and the thermal performance of the IC and the PCB.
