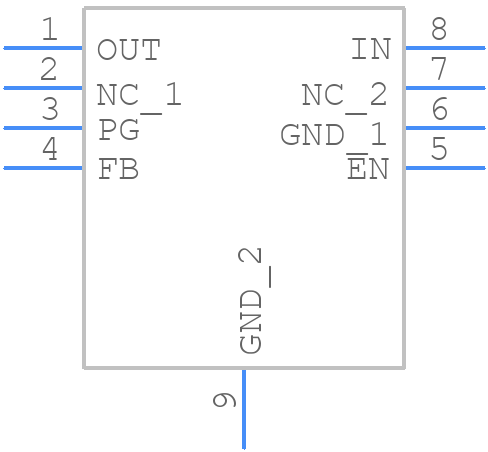

MP2002DD-LF-Z - Monolithic Power Systems (MPS)

MP2002DD-LF-Z Details

• Manufacturer Part Number:

  MP2002DD-LF-Z

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SON

• Package Description:

  QFN-8

• Pin Count:

  8

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  3

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Nom:

  0.29 V

• JESD-30 Code:

  R-XDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  5 V

• Output Voltage1-Min:

  0.5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HTSON

• Package Equivalence Code:

  SOLCC8,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.05 mm

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  2 mm
