The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help to reduce thermal resistance.
To ensure the device is properly biased during startup, make sure to provide a stable input voltage and a valid enable signal (EN pin) before applying power to the output. Also, ensure that the output capacitors are properly sized and placed close to the device to minimize voltage overshoot and ringing.
The maximum allowed input voltage ripple for the MP20045DN-33-LF-Z is 1% of the input voltage, or 100mV, whichever is smaller. Exceeding this limit may affect the device's performance and stability.
The MP20045DN-33-LF-Z is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
To troubleshoot output voltage errors or instability, check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly biased and that the output capacitors are properly sized and placed. Also, check for any signs of overheating or thermal shutdown.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP20045DN-33-LF-Z Overview

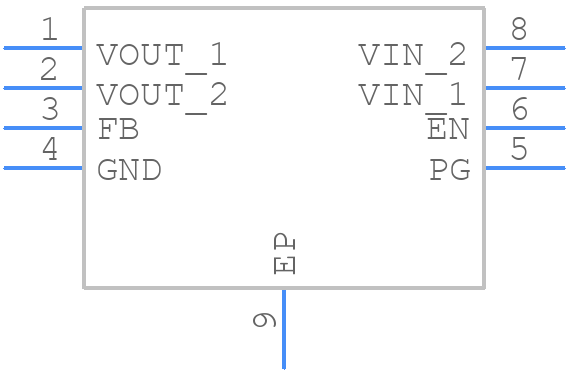

Use the download button to access the MP20045DN-33-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP200,
or try a keyword search, such as Linear Regulator ICs
