A good PCB layout for the MP20045DQ-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
For minimal ripple and noise, use a combination of capacitors with different ESR values. A good starting point is to use a 10uF ceramic capacitor in parallel with a 22uF electrolytic capacitor. Additionally, consider adding a small inductor (e.g., 1uH) in series with the output capacitor to further reduce ripple.
For the MP20045DQ-LF-Z, a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7uF to 10uF is recommended. This helps to filter out input noise and ensures stable operation.
Monitor the device's junction temperature (TJ) by using the thermal monitoring pin (if available) or by estimating TJ based on the device's power dissipation and thermal resistance. Ensure good airflow, use a heat sink if necessary, and avoid operating the device near its maximum rated temperature.
To ensure EMI and EMC compliance, use a shielded inductor, keep the switching node (SW) as short as possible, and use a common-mode choke or ferrite bead on the input lines. Additionally, consider using a snubber network to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP20045DQ-LF-Z Overview

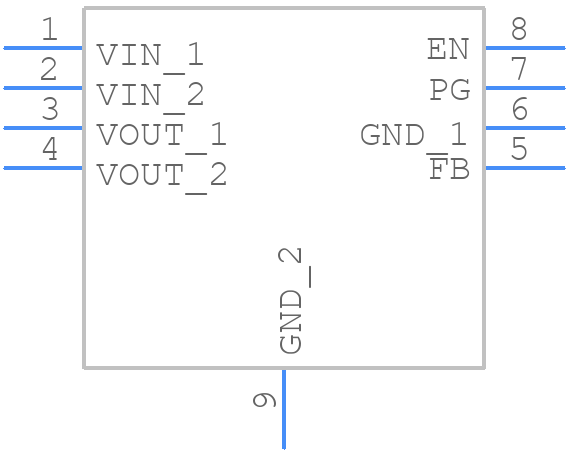

Use the download button to access the MP20045DQ-LF-Z schematic symbol, PCB footprint, and 3D model.
