A good PCB layout for the MP20046DN-S-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
For the MP20046DN-S-LF-Z, choose an output capacitor with low ESR (Equivalent Series Resistance) and high ripple current rating. A 10uF to 22uF ceramic capacitor with X5R or X7R dielectric is a good starting point. Consider the output voltage, output current, and desired ripple voltage when selecting the capacitor.
For the MP20046DN-S-LF-Z, use a 4.7uF to 10uF ceramic capacitor with X5R or X7R dielectric as the input capacitor. Place the input capacitor as close to the VIN pin as possible, and ensure the capacitor's voltage rating exceeds the maximum input voltage.
To ensure the OCP is triggered correctly, connect a sense resistor (Rs) between the output of the converter and the OCP pin. The value of Rs depends on the desired overcurrent threshold. A typical value for Rs is 10kΩ to 20kΩ. Make sure to follow the datasheet's guidelines for OCP setup.
For the MP20046DN-S-LF-Z, keep the feedback network as short as possible and away from noisy signals. Use a 1kΩ to 2kΩ resistor (Rfb) and a 10nF to 22nF capacitor (Cfb) for the feedback network. Place the feedback components close to the FB pin, and ensure the feedback trace is not routed near the inductor or other noisy signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP20046DN-S-LF-Z Overview

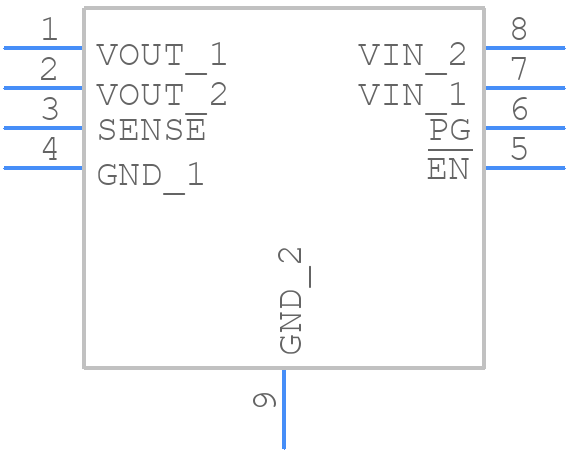

Use the download button to access the MP20046DN-S-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP200,
or try a keyword search, such as Linear Regulator ICs
