MP20073DH-LF-Z - Monolithic Power Systems (MPS)

Description: Power Management Specialized - PMIC 2A 1.3-6V DDR Memory Termination Reg

Download MP20073DH-LF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

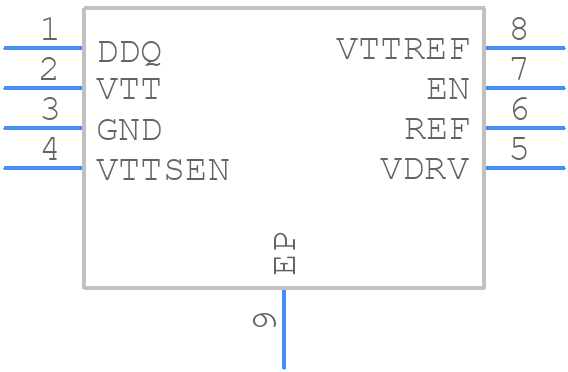

MP20073DH-LF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP20073DH-LF-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8E W/ EXPOS...ED PAD
click to zoom
3D Models
MP20073DH-LF-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - MSOP8E W/ EXPOS...ED PAD
click to zoom

MP20073DH-LF-Z Details

  • Manufacturer Part Number:

    MP20073DH-LF-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MP20073DH-LF-Z Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal path short and use a thermal pad on the bottom of the IC.
  • Ensure the output capacitor has a low ESR, use a minimum of 10uF capacitance, and add a 1-2nF capacitor in parallel with the output capacitor to prevent oscillations.
  • The maximum input voltage is 26V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • The device is rated for operation up to 125°C, but derating is required above 85°C. Ensure proper thermal design and consider using a heat sink if operating in high-temperature environments.
  • The output voltage accuracy is ±2% over the entire operating range. Calculate the tolerance by adding the output voltage accuracy to the resistor tolerance used in the feedback network.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP20073DH-LF-Z Overview

Use the download button to access the MP20073DH-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP200, or try a keyword search, such as Other Regulators
