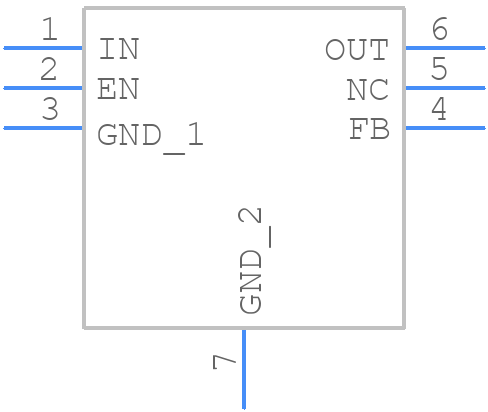

MP2013AGG-Z - Monolithic Power Systems (MPS)

MP2013AGG-Z Details

• Manufacturer Part Number:

  MP2013AGG-Z

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-6

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  6.2

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.85 V

• Dropout Voltage1-Nom:

  0.6 V

• JESD-30 Code:

  S-PDSO-N6

• Length:

  2 mm

• Line Regulation-Max (%/V):

  0.05

• Load Regulation-Max(%):

  1.499%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.15 A

• Output Voltage1-Max:

  15 V

• Output Voltage1-Min:

  1.215 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.08,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  2 mm
