MP2143DJ-LF-P footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

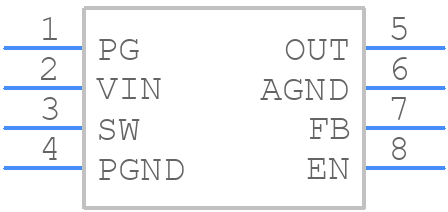

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP2143DJ-LF-P
Part Number MP2143DJ-LF-P
Manufacturer Monolithic Power Systems (MPS)
Pin Count 8
Part Category Integrated Circuit
Package Category SOT23 (8-Pin)
Footprint Name SOT23 (8-Pin) - TSOT23-8
Released Date Jul 21, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MP2143DJ-LF-P Details

Manufacturer Part Number:
MP2143DJ-LF-P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TSOT-23, 8 PIN
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
28 Weeks
Date Of Intro:
2017-10-19
Manufacturer:
Monolithic Power Systems
YTEOL:
7.3
Additional Feature:
ADJUSTBLE OUTPUT FROM 0.6V TO 5V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
2.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1500 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
1.6 mm

MP2143DJ-LF-P Frequently Asked Questions (FAQs)

A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching node (SW pin) away from sensitive analog nodes and ensure good thermal conduction to the PCB.
Choose an output capacitor with low ESR (Equivalent Series Resistance) and high capacitance. A 10uF to 22uF ceramic capacitor with X5R or X7R dielectric is recommended. Ensure the capacitor is rated for the output voltage and has a low ESL (Equivalent Series Inductance).
Use a 1uF to 4.7uF ceramic capacitor with X5R or X7R dielectric, rated for the input voltage. Place the capacitor close to the VIN pin and ensure a low-impedance path to the input capacitor.
Ensure the input voltage is within the recommended range (4.5V to 15V). Keep the junction temperature (TJ) below 125°C. Monitor the output voltage and current to prevent overvoltage and overcurrent conditions.
Use a shielded inductor and ensure good PCB layout practices. Keep the switching node (SW pin) away from sensitive analog nodes. Use a common-mode choke or ferrite bead on the input and output lines to reduce EMI emissions.

Trust Checks

Community Provided

System Verified

Community Approved

MP2143DJ-LF-P Overview

Use the download button to access the MP2143DJ-LF-P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MP214, or try a keyword search, such as Switching Regulator or Controllers
