A good PCB layout for the MP2143DJ-Z should prioritize thermal dissipation. Place the IC near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the input and output capacitors close to the IC, and use wide traces for the power paths.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage ripple and ensure stable operation. For output capacitors, select ones with low ESR and high capacitance to reduce output voltage ripple and improve transient response. Consult the datasheet for recommended capacitor values and types.
The MP2143DJ-Z is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
To adjust the output voltage, connect a resistive divider from the output voltage to the FB pin, with the center tap of the divider connected to the FB pin. The ratio of the resistors determines the output voltage. Consult the datasheet for the recommended resistor values and calculation formula.
The EN (Enable) pin is used to turn the regulator on or off. Connect the EN pin to a logic high (VIN or a voltage above 1.4V) to enable the regulator, or to a logic low (GND) to disable it. You can use the EN pin to implement power sequencing or to turn off the regulator during shutdown or low-power modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2143DJ-Z Overview

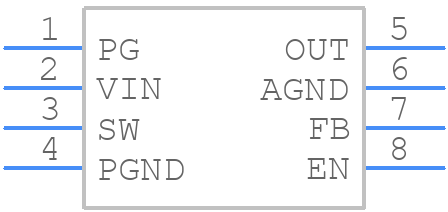

Use the download button to access the MP2143DJ-Z schematic symbol, PCB footprint, and 3D model.
