A good PCB layout is crucial for the MP2144GJ-Z. Keep the input and output capacitors close to the IC, and use a solid ground plane to reduce noise. Use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Avoid routing high-frequency signals near the IC.
To ensure stability, make sure the output capacitor is within the recommended range (22uF to 47uF). Also, ensure the input capacitor is at least 10uF. Avoid using capacitors with high ESR. Additionally, keep the feedback loop as short as possible and avoid routing it near noise sources.
The maximum input voltage that can be applied to the MP2144GJ-Z is 18V. Exceeding this voltage may damage the IC. It's recommended to add input voltage protection, such as a TVS diode, to prevent overvoltage conditions.
The output voltage of the MP2144GJ-Z can be calculated using the following formula: Vout = (R1 / R2) * (0.8V + (Iadj * R3)), where R1, R2, and R3 are the resistors in the feedback network, and Iadj is the adjust pin current.
The maximum output current that the MP2144GJ-Z can deliver is 4A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Ensure that the IC is properly heatsinked and the output current is within the recommended range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2144GJ-Z Overview

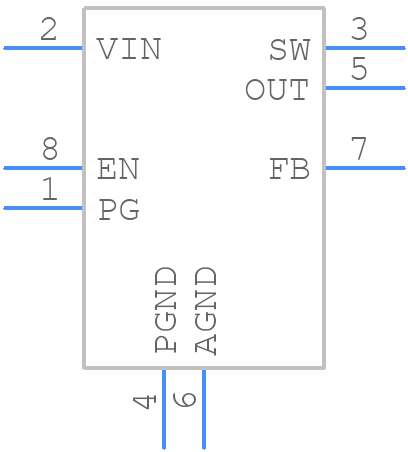

Use the download button to access the MP2144GJ-Z schematic symbol, PCB footprint, and 3D model.
