The recommended PCB layout for the MP2148GQD-33-P involves placing the input and output capacitors close to the IC, using wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
To ensure the device operates within the SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is below the maximum rating, and the junction temperature is below 125°C.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 25V.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
The EN pin is an enable input that allows the device to be turned on or off. To use it, connect the EN pin to a logic signal (e.g., a microcontroller output) that is high when the device is enabled and low when it is disabled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2148GQD-33-P Overview

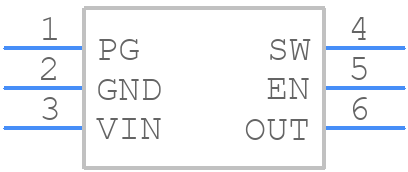

Use the download button to access the MP2148GQD-33-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP214,
or try a keyword search, such as Switching Regulator or Controllers
