A good PCB layout for the MP2161GJ-Z should prioritize thermal dissipation. Place the IC near a thermal pad or a heat sink, and ensure that the thermal pad is connected to a solid ground plane. Keep the input and output capacitors close to the IC to minimize parasitic inductance.
To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high ripple current rating. A minimum output capacitance of 10uF is recommended.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC.
The MP2161GJ-Z is rated for operation up to 85°C. However, it's essential to consider the thermal derating curve and ensure that the IC's junction temperature remains below 125°C. Proper heat sinking and thermal management are crucial in high-temperature environments.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the recommended values. Use an oscilloscope to inspect the output voltage waveform and look for signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2161GJ-Z Overview

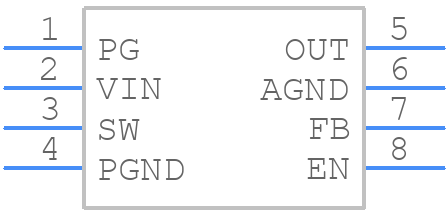

Use the download button to access the MP2161GJ-Z schematic symbol, PCB footprint, and 3D model.
