A good PCB layout for the MP2162AGQH-Z should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) close to the VIN pin. Additionally, keep the input and output capacitors close to the IC and use short, wide traces for the power paths.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly sized for the output voltage and current. Additionally, add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to help dampen oscillations.
The maximum input voltage that can be applied to the VIN pin is 24V. Exceeding this voltage may damage the IC.
The output voltage can be adjusted by changing the resistive divider ratio of the FB (feedback) pin. A higher resistor value will increase the output voltage, while a lower value will decrease it. Use the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider.
The maximum output current that the MP2162AGQH-Z can deliver is 2A. Exceeding this current may cause the IC to overheat or shut down.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2162AGQH-Z Overview

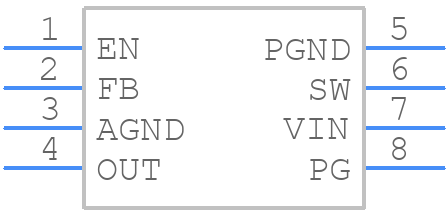

Use the download button to access the MP2162AGQH-Z schematic symbol, PCB footprint, and 3D model.
