The maximum input voltage that can be applied to the MP2171GJ-Z is 18V, although it's recommended to keep it below 15V for optimal performance and reliability.
To ensure the MP2171GJ-Z operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid high power dissipation during operation.
Yes, the MP2171GJ-Z is suitable for high-reliability applications, as it's built with high-quality components and has undergone rigorous testing and qualification. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the MP2171GJ-Z, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and configured. If the issue persists, consult the datasheet and application notes, or contact Monolithic Power Systems' technical support for assistance.
Yes, the MP2171GJ-Z is compatible with lead-free soldering processes, as it's built with lead-free materials and is RoHS compliant.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2171GJ-Z Overview

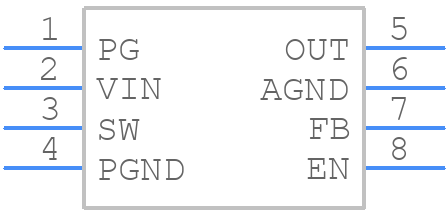

Use the download button to access the MP2171GJ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP217,
or try a keyword search, such as Switching Regulator or Controllers
