MP2263GD-Z footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

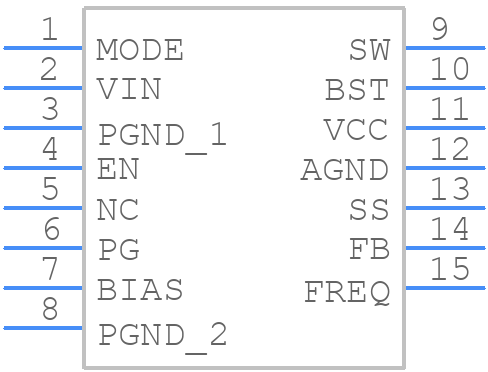

Symbol

click to zoom

PCB Footprints

MP2263GD-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP2263GD-Z-1

click to zoom

3D Models

MP2263GD-Z - Monolithic Power Systems (MPS) - 3D model - Other - MP2263GD-Z-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP2263GD-Z
Part Number MP2263GD-Z
Manufacturer Monolithic Power Systems (MPS)
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MP2263GD-Z-1
Released Date Dec 29, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

MP2263GD-Z Details

Manufacturer Part Number:
MP2263GD-Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-15
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
24 Weeks
Manufacturer:
Monolithic Power Systems
YTEOL:
7.9
Additional Feature:
ALSO HAS PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
30 V
Input Voltage-Min:
3.3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XQCC-N15
Length:
3 mm
Number of Functions:
1
Number of Terminals:
15
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6.7 A
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC15/16,.08X.12,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2750 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
2 mm

MP2263GD-Z Frequently Asked Questions (FAQs)

The maximum input voltage that can be applied to the MP2263GD-Z is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
The maximum output current that the MP2263GD-Z can deliver is 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
The output voltage of the MP2263GD-Z can be adjusted by using a resistive divider network between the output and the ADJ pin. The output voltage can be calculated using the formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
The EN (Enable) pin on the MP2263GD-Z is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled.
