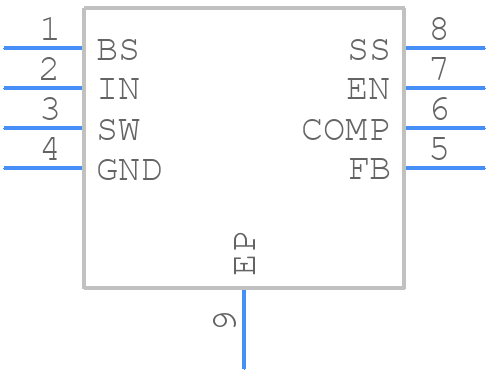

MP2303ADN-LF - Monolithic Power Systems (MPS)

MP2303ADN-LF Details

• Manufacturer Part Number:

  MP2303ADN-LF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  SOIC-8

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  3

• Additional Feature:

  ADJUSTABLE OUTPUT MODE FROM 0.80V TO 25V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Input Voltage-Max:

  28 V

• Input Voltage-Min:

  4.7 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.9 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  25 V

• Output Voltage-Min:

  0.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLSOP

• Package Equivalence Code:

  SOP8,.23

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.7 mm

• Supply Current-Max (Isup):

  1.6 mA

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  360 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  3.9 mm
