MP2307DN-LF - Monolithic Power Systems (MPS)

Description: IC REG BUCK ADJUSTABLE 3A 8SOIC

Download MP2307DN-LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

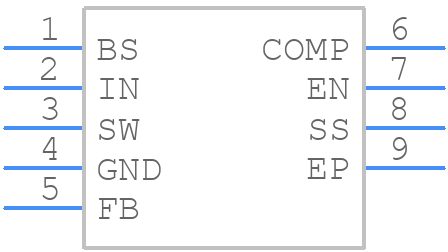

Symbol
MP2307DN-LF - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP2307DN-LF - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP2307DN-LF-1
click to zoom
3D Models
MP2307DN-LF - Monolithic Power Systems (MPS) - 3D model - Other - MP2307DN-LF-1
click to zoom

MP2307DN-LF Details

  • Manufacturer Part Number:

    MP2307DN-LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    23 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    380 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.905 mm

MP2307DN-LF Frequently Asked Questions (FAQs)

  • The MP2307DN-LF can handle a maximum input voltage of 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the input and output capacitors close to the IC to minimize noise and oscillations.
  • The MP2307DN-LF can provide a maximum output current of 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
  • The output voltage can be adjusted by using a resistive divider network between the output and the FB pin. The ratio of the resistors determines the output voltage, and the datasheet provides a formula to calculate the required resistor values.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP2307DN-LF Overview

Use the download button to access the MP2307DN-LF schematic symbol, PCB footprint, and 3D model.
