MP2316GD-P - Monolithic Power Systems (MPS)

Description: MONOLITHIC POWER SYSTEMS (MPS) - MP2316GD-P - DC-DC Switching Synchronous Buck Regulator, 4V-19V in, 600mV to 19V out, 3A, QFN-14

Download MP2316GD-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

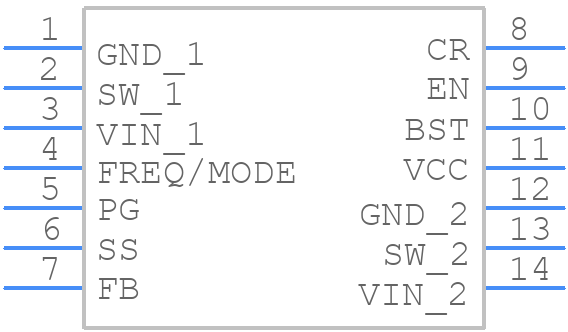

MP2316GD-P - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP2316GD-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-14 (2mmx3mm)_H=1mm
click to zoom
3D Models
MP2316GD-P - Monolithic Power Systems (MPS) - 3D model - Other - QFN-14 (2mmx3mm)_H=1mm
click to zoom

MP2316GD-P Details

  • Manufacturer Part Number:

    MP2316GD-P

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Monolithic Power Systems

  • Additional Feature:

    ALSO HAS PWM AND PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    CONSTANT ON TIME

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N14

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.08X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

MP2316GD-P Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MP2316GD-P is 24V, but it's recommended to keep it below 20V for optimal performance and reliability.
  • To ensure the MP2316GD-P operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid high input voltages or excessive output currents.
  • The minimum input voltage required for the MP2316GD-P to operate is 4.5V, but it's recommended to keep it above 5V for optimal performance and stability.
  • Yes, the MP2316GD-P is suitable for high-reliability and automotive applications, as it meets the AEC-Q100 standard and has a high MTBF (Mean Time Between Failures) rating.
  • To configure the MP2316GD-P for a specific output voltage, use the FB (Feedback) pin and an external resistor divider network to set the desired output voltage. Refer to the datasheet for specific resistor values and configuration guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP2316GD-P Overview

Use the download button to access the MP2316GD-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP231, or try a keyword search, such as Switching Regulator or Controllers
