MP2326GD-P - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators 19V 4A Low IQ HiEff COT Step Down Conv

Download MP2326GD-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

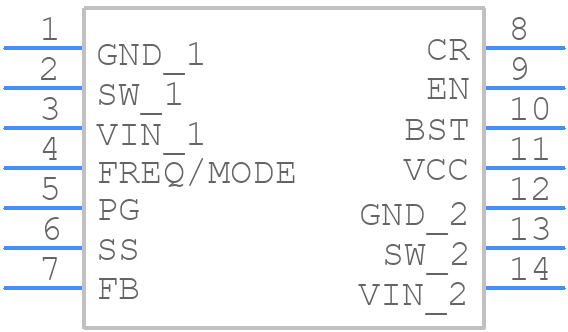

MP2326GD-P - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP2326GD-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP2326GD-P-3
click to zoom
3D Models
MP2326GD-P - Monolithic Power Systems (MPS) - 3D model - Other - MP2326GD-P-3
click to zoom

MP2326GD-P Details

  • Manufacturer Part Number:

    MP2326GD-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    CONSTANT ON TIME

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    3.9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XBCC-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Width:

    2 mm

MP2326GD-P Frequently Asked Questions (FAQs)

  • The MP2326GD-P can handle a maximum input voltage of 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
  • The MP2326GD-P can provide a maximum output current of 2A, but it's recommended to keep it below 1.5A for optimal performance and reliability.
  • The output voltage of the MP2326GD-P can be adjusted by using a resistive divider network between the output pin and the ground pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The EN (Enable) pin on the MP2326GD-P is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled.
