MP2384GG-P - Monolithic Power Systems (MPS)

Description: 24V, 4A, SYNCHRONOUS, BUCK CONVERTER

Download MP2384GG-P Model
Schematic

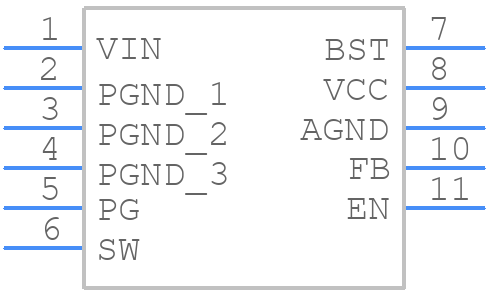

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MP2384GG-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-11 (2mmx2mm)
click to zoom
3D Models
MP2384GG-P - Monolithic Power Systems (MPS)  - 3D model - Other - QFN-11 (2mmx2mm)
click to zoom

MP2384GG-P Details

  • Manufacturer Part Number:

    MP2384GG-P

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-11

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N11

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    13 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC11,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    800 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

MP2384GG-P Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MP2384GG-P is 28V, although the recommended maximum input voltage is 24V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor with low ESR, and add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
  • The minimum input voltage required for the MP2384GG-P to operate is 4.5V, although the device can still operate down to 4V with reduced performance and efficiency.
  • The MP2384GG-P is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • The output voltage of the MP2384GG-P can be adjusted by using a resistive divider network between the VOUT and GND pins, with the FB pin connected to the center tap of the divider. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2.
