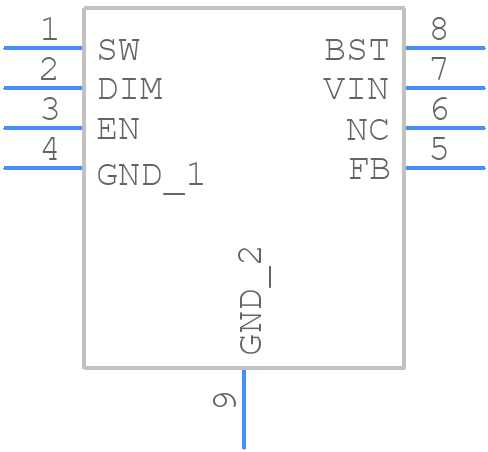

MP2480DN-LF-Z - Monolithic Power Systems (MPS)

MP2480DN-LF-Z Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the MP2480DN-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Use a 2-3 layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the device to minimize parasitic inductance.
• How do I optimize the output voltage accuracy and stability?
  To optimize output voltage accuracy and stability, ensure that the input voltage is within the recommended range (4.5V to 26V). Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a suitable voltage rating. Additionally, minimize the distance between the output capacitor and the device to reduce parasitic inductance.
• What is the recommended input capacitor type and value for this device?
  A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7uF to 10uF is recommended for the input capacitor. This helps to filter out high-frequency noise and ensures stable operation.
• How do I protect the device from overcurrent and overheating?
  Implement overcurrent protection (OCP) and overtemperature protection (OTP) mechanisms to prevent damage to the device. The MP2480DN-LF-Z has built-in OCP and OTP features, but additional external protection may be necessary depending on the application. Ensure that the device is operated within the recommended temperature range (-40°C to 125°C).
• What is the recommended startup sequence for the MP2480DN-LF-Z?
  To ensure a smooth startup, apply the input voltage (VIN) before enabling the device (EN pin). This allows the internal voltage regulators to stabilize before the device becomes active. A soft-start circuit can also be implemented to reduce inrush current and prevent voltage overshoot.
