The recommended PCB layout for the MP2480DN-LF involves placing the input and output capacitors close to the IC, using wide traces for the power paths, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor's ESR should be within the recommended range, and the input capacitor should be placed close to the IC. A soft-start circuit can also help prevent oscillations.
The MP2480DN-LF is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-power applications or in environments with poor airflow.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to ensure optimal operation.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the recommended design. Use an oscilloscope to measure the output voltage ripple and switching frequency. Consult the datasheet and application notes for guidance on specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2480DN-LF Overview

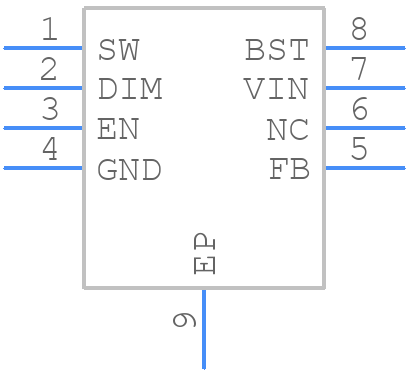

Use the download button to access the MP2480DN-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP248,
or try a keyword search, such as Display Drivers
