MP2483DS-LF - Monolithic Power Systems (MPS)

Description: Monolithic Power Systems (MPS) MP2483DS-LF LED Driver IC, 4.5 → 55 V 2.5A 14-Pin SOIC

Download MP2483DS-LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

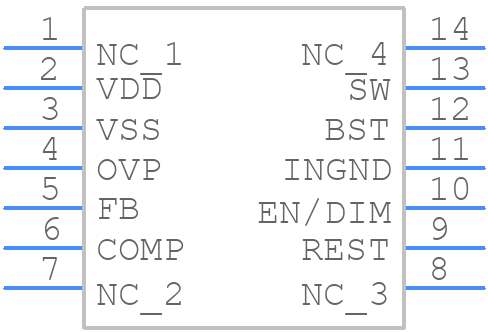

MP2483DS-LF - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP2483DS-LF - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC14
click to zoom
3D Models
MP2483DS-LF - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - SOIC14
click to zoom

MP2483DS-LF Details

  • Manufacturer Part Number:

    MP2483DS-LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    55 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MP2483DS-LF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MP2483DS-LF is 28V, although the recommended operating input voltage range is 4.5V to 18V.
  • To ensure the MP2483DS-LF operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature within the recommended range, and avoid exceeding the maximum junction temperature of 150°C.
  • The minimum input capacitance required for stable operation is 10uF, although a larger capacitance value may be needed depending on the input voltage and output current requirements.
  • Yes, the MP2483DS-LF is qualified for automotive and high-reliability applications, and meets the requirements of AEC-Q100 Grade 1. However, additional testing and validation may be required depending on the specific application.
  • The output voltage of the MP2483DS-LF can be adjusted by connecting a resistive divider network between the output and the FB pin, and adjusting the resistors to achieve the desired output voltage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP2483DS-LF Overview

Use the download button to access the MP2483DS-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP248, or try a keyword search, such as Display Drivers
