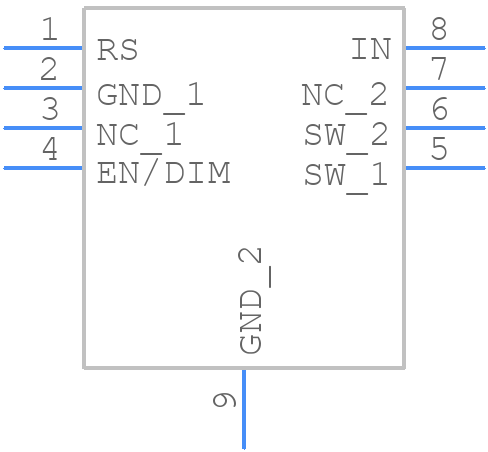

MP24895-AGH - Monolithic Power Systems (MPS)

MP24895-AGH Details

• Manufacturer Part Number:

  MP24895-AGH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MSOP-8

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  7.89

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  2

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  1.1 mA

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  6 V

• Supply Voltage-Nom:

  24 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
