A good PCB layout for the MP2492DN-LF-Z should minimize the area of the power loops, keep the input and output capacitors close to the IC, and use a solid ground plane to reduce noise and EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VCC pin and GND to filter out noise. Also, ensure that the output capacitor has a low ESR and is placed close to the IC.
The maximum input voltage rating for the MP2492DN-LF-Z is 28V, but it's recommended to operate within the specified input voltage range (4.5V to 24V) for optimal performance and reliability.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to ensure optimal performance and should be used whenever possible.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily determined by the output capacitor value, ESR, and the inductor value. The noise is primarily determined by the switching frequency, output capacitor value, and the PCB layout.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2492DN-LF-Z Overview

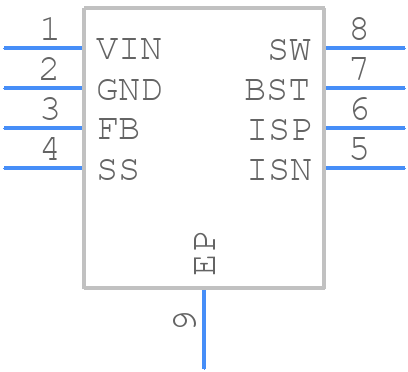

Use the download button to access the MP2492DN-LF-Z schematic symbol, PCB footprint, and 3D model.
