A good PCB layout for the MP24943DN-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To optimize output voltage accuracy, ensure the input voltage is within the recommended range, and the output voltage is set using a high-precision resistor divider network. Additionally, minimize noise and ripple on the input voltage, and use a low-ESR output capacitor to reduce output voltage ripple.
A low-ESR, X5R or X7R ceramic capacitor with a value between 4.7uF to 10uF is recommended for the input capacitor. This helps to filter out input voltage noise and ripple, ensuring stable operation.
During power-up, ensure the EN pin is pulled high after the input voltage has reached the minimum recommended value. During power-down, pull the EN pin low before the input voltage drops below the minimum recommended value. This ensures proper device operation and prevents unwanted startup or shutdown.
The maximum allowed output current for the MP24943DN-LF-Z is 3A. Exceeding this limit may cause device overheating, reduced lifespan, or even damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP24943DN-LF-Z Overview

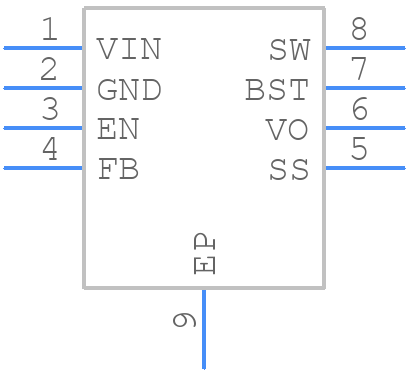

Use the download button to access the MP24943DN-LF-Z schematic symbol, PCB footprint, and 3D model.
