A good PCB layout for the MP24971DS-LF-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the input and output capacitors close to the device to minimize parasitic inductance.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage ripple and ensure stable operation. For output capacitors, select ones with low ESR and high capacitance to filter out noise and provide a stable output voltage. Consult the datasheet for recommended capacitor values and types.
The MP24971DS-LF-Z has a maximum ambient temperature rating of 85°C. However, the device's junction temperature (TJ) should not exceed 125°C. Ensure proper thermal design and heat dissipation to prevent overheating and ensure reliable operation.
The MP24971DS-LF-Z is an industrial-grade device, but it may not meet the specific requirements for high-reliability or automotive applications. Check the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation to ensure it meets the necessary standards for your application.
To troubleshoot issues with the MP24971DS-LF-Z, start by verifying the input voltage, output voltage, and current. Check the PCB layout and thermal design for any potential issues. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP24971DS-LF-Z Overview

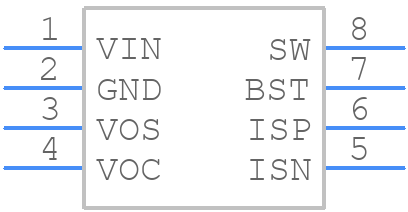

Use the download button to access the MP24971DS-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP249,
or try a keyword search, such as Switching Regulator or Controllers
