A good PCB layout for the MP2497GN-A-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To optimize output voltage accuracy, ensure the feedback resistors (R1 and R2) have a 1% tolerance or better. Also, use a high-precision voltage reference (e.g., 0.5% or better) and keep the output voltage sensing traces as short as possible to minimize noise and voltage drops.
For the MP2497GN-A-Z, use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7 μF to 10 μF. This will help filter out input noise and ensure stable operation.
During power-up, ensure the EN pin is pulled high (or connected to VIN) after the input voltage has reached the minimum operating voltage (around 2.5 V). During power-down, pull the EN pin low before the input voltage drops below the minimum operating voltage.
The MP2497GN-A-Z can deliver up to 3 A of output current. However, the actual maximum current depends on the input voltage, output voltage, and thermal conditions. Always check the device's thermal performance and adjust the output current accordingly to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP2497GN-A-Z Overview

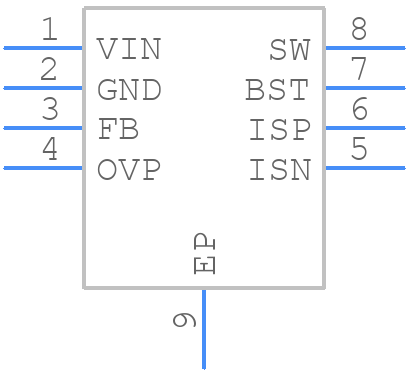

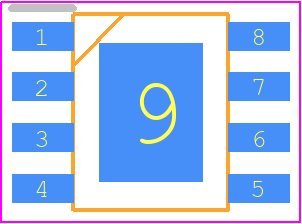

Use the download button to access the MP2497GN-A-Z schematic symbol, PCB footprint, and 3D model.
