The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the input and output capacitors close to the device and using short, wide traces can help reduce thermal resistance.
To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR, and place it close to the device. Also, avoid using long, thin traces and keep the input and output capacitors decoupled from each other.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
While ceramic capacitors can be used for the output filter, they may not be the best choice due to their potential for resonance and noise. It's recommended to use a low-ESR electrolytic capacitor or a polymer capacitor for the output filter to ensure stable operation and minimize noise.
To calculate the power dissipation of the device, use the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Make sure to consider the thermal resistance of the device and the PCB layout when calculating the power dissipation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

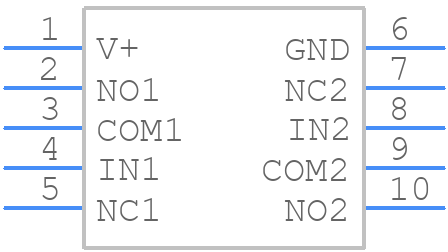

MP2735DQG-LF-Z Overview
Use the download button to access the MP2735DQG-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP273,
or try a keyword search, such as Multiplexers or Switches
