MP28162GC-Z - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators High-Efficiency, Synchronous Buck-Boost Converter with 1.5A MOSFETs in a Small WLCSP Package

Download MP28162GC-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

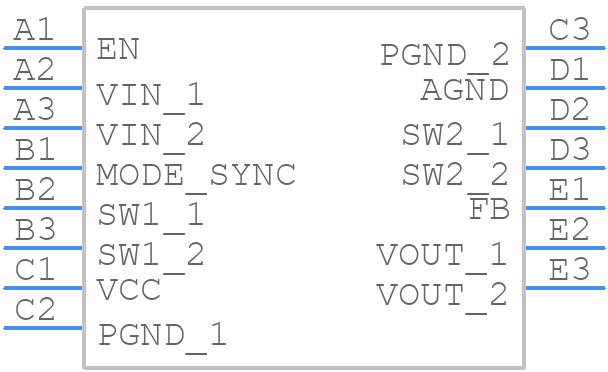

MP28162GC-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP28162GC-Z - Monolithic Power Systems (MPS) PCB footprint - BGA - BGA - MP28162GC-Z
click to zoom
3D Models
MP28162GC-Z - Monolithic Power Systems (MPS) - 3D model - BGA - MP28162GC-Z
click to zoom

MP28162GC-Z Details

  • Manufacturer Part Number:

    MP28162GC-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-15

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Additional Feature:

    ALSO HAS PSM CONTROL TECHINQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.2 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-XBGA-B15

  • Length:

    2.1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.5 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.63 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    3000 kHz

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.3 mm

MP28162GC-Z Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MP28162GC-Z. Ensure a solid ground plane, keep the input and output capacitors close to the IC, and use a Kelvin connection for the sense pins. A 4-layer PCB with a dedicated power plane is recommended.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. The datasheet recommends 10uF to 22uF for input and 22uF to 47uF for output.
  • The MP28162GC-Z is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress.
  • The MP28162GC-Z has built-in OCP and SCP. For OCP, set the OCSET pin to the desired current limit. For SCP, use an external resistor divider to set the SCP threshold. Refer to the datasheet for specific implementation details.
  • The MP28162GC-Z can operate from 4.5V to 18V input voltage. However, for optimal performance, it's recommended to keep the input voltage between 6V and 12V to minimize power losses and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP28162GC-Z Overview

Use the download button to access the MP28162GC-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP281, or try a keyword search, such as Switching Regulator or Controllers

Parts related to MP28162GC-Z

Showing 0 results

Part Image
