A good PCB layout for the MP28167GQ-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To optimize output voltage accuracy, ensure the input voltage is within the recommended range, and the output voltage is set using a high-precision resistor divider network. Additionally, minimize noise and ripple on the input voltage, and use a low-ESR output capacitor to reduce output voltage ripple.
A low-ESR, X5R or X7R ceramic capacitor with a value between 4.7uF to 10uF is recommended for the input capacitor. This helps to filter out input voltage noise and ripple, ensuring stable operation.
The enable pin (EN) should be pulled high during normal operation and pulled low during shutdown. Ensure a clean power-up and power-down sequence by slowly ramping up the input voltage and waiting for the device to stabilize before asserting the EN pin high.
The MP28167GQ-Z has a thermal pad that must be connected to a solid ground plane or a heat sink to ensure efficient heat dissipation. Keep the device away from heat sources, and ensure good airflow around the device. Monitor the device's junction temperature (TJ) to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP28167GQ-Z Overview

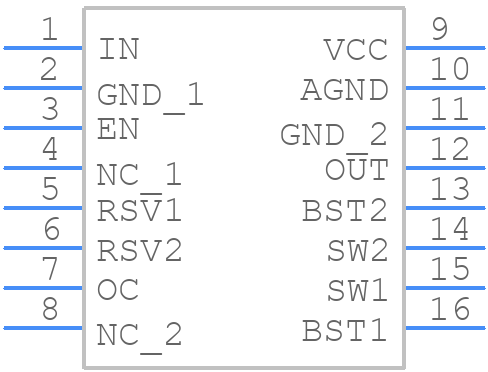

Use the download button to access the MP28167GQ-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP281,
or try a keyword search, such as Switching Regulator or Controllers
