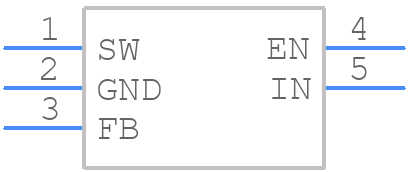

MP3302DJ-LF-P - Monolithic Power Systems (MPS)

MP3302DJ-LF-P Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  The recommended PCB layout for the MP3302DJ-LF-P involves placing the input and output capacitors close to the IC, using wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
• How do I ensure stability and prevent oscillations in the output voltage?
  To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should have a low ESR, and the input capacitor should be placed close to the IC. A minimum output capacitance of 10uF is recommended.
• What is the maximum ambient temperature for reliable operation?
  The MP3302DJ-LF-P can operate reliably up to an ambient temperature of 85°C. However, the junction temperature should not exceed 125°C. It's essential to ensure proper thermal design and heat dissipation to prevent overheating.
• Can I use a ceramic capacitor for the output filter?
  While ceramic capacitors can be used for the output filter, they may not be the best choice due to their high ESR and potential for resonance. A low-ESR electrolytic or polymer capacitor is recommended for the output filter to ensure stability and optimal performance.
• How do I calculate the power dissipation and heat sink requirements?
  The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The heat sink requirements can be determined based on the calculated power dissipation, ambient temperature, and desired junction temperature. A thermal design calculator or simulation tool can be used to aid in the calculation.
