MP3308DL-LF-Z footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

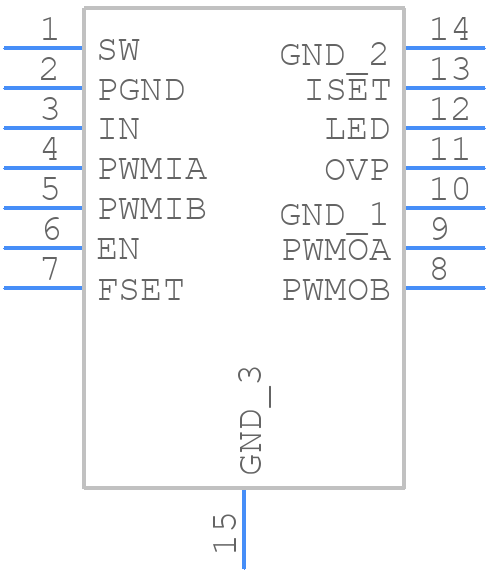

Symbol

PCB Footprints

3D Models

MP3308DL-LF-Z Details

The maximum input voltage that can be applied to the MP3308DL-LF-Z is 18V, although it's recommended to keep it below 15V for optimal performance and reliability.
To ensure the stability of the output voltage, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor with low ESR, and avoid high-frequency noise on the input and output lines.
The MP3308DL-LF-Z is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
The power dissipation of the MP3308DL-LF-Z can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Consult the datasheet for specific values and guidelines.
Yes, the MP3308DL-LF-Z is compatible with lead-free soldering processes and is RoHS compliant.

Community Provided

System Verified

Community Approved

Use the download button to access the MP3308DL-LF-Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MP330, or try a keyword search, such as Display Drivers
