MP3398AGF-Z - Monolithic Power Systems (MPS)

Description: IC LED DRIVER

Download MP3398AGF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

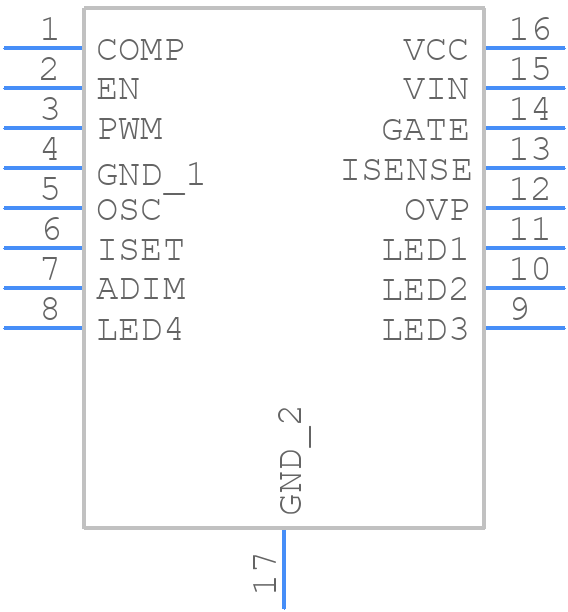

MP3398AGF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP3398AGF-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16-EP
click to zoom
3D Models
MP3398AGF-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - TSSOP16-EP
click to zoom

MP3398AGF-Z Details

  • Manufacturer Part Number:

    MP3398AGF-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2A

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MP3398AGF-Z Frequently Asked Questions (FAQs)

  • The MP3398AGF-Z can handle a maximum input voltage of 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
  • The MP3398AGF-Z can provide a maximum output current of 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
  • The output voltage of the MP3398AGF-Z can be adjusted by using a resistive divider network between the output pin and the ground pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The EN (Enable) pin on the MP3398AGF-Z is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP3398AGF-Z Overview

Use the download button to access the MP3398AGF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP339, or try a keyword search, such as Display Drivers
