MP3398AGS-Z - Monolithic Power Systems (MPS)

Description: LED Lighting Drivers 4-Ch Boost WLED Controller

Download MP3398AGS-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

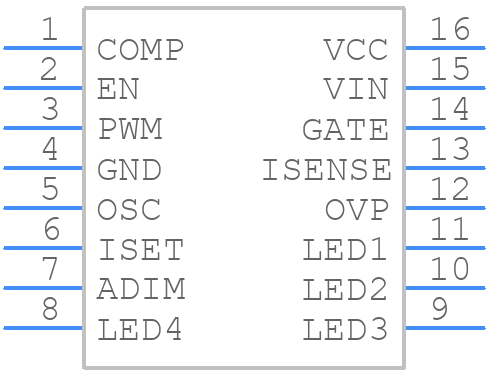

Symbol
MP3398AGS-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP3398AGS-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16
click to zoom
3D Models
MP3398AGS-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - SOIC-16
click to zoom

MP3398AGS-Z Details

  • Manufacturer Part Number:

    MP3398AGS-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MP3398AGS-Z Frequently Asked Questions (FAQs)

  • The MP3398AGS-Z can handle a maximum input voltage of 24V, but it's recommended to keep it below 20V for optimal performance and reliability.
  • To minimize EMI, keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-current paths short and direct. Also, avoid routing sensitive analog signals near the switching node.
  • The recommended PCB layout for the MP3398AGS-Z is to use a 4-layer board with a solid ground plane, and to keep the input and output capacitors on the same layer as the IC. Also, keep the high-current paths on the top layer and the sensitive analog signals on the inner layers.
  • The output voltage of the MP3398AGS-Z can be calculated using the formula: Vout = (R1/R2) * (Vin - Vfb), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vfb is the feedback voltage.
  • The maximum output current of the MP3398AGS-Z is 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP3398AGS-Z Overview

Use the download button to access the MP3398AGS-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP339, or try a keyword search, such as Display Drivers
