MP3416GQH-Z - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators 1A,Low Quiescent Current, Step-up Converter with Output Disconnect

Download MP3416GQH-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

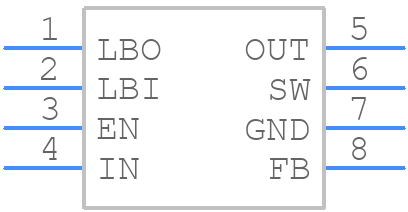

MP3416GQH-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP3416GQH-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MP3416GQH-Z-1
click to zoom
3D Models
MP3416GQH-Z - Monolithic Power Systems (MPS) - 3D model - Other - MP3416GQH-Z-1
click to zoom

MP3416GQH-Z Details

  • Manufacturer Part Number:

    MP3416GQH-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.86 V

  • Input Voltage-Nom:

    1.8 V

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.41 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.06,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    1.5 mm

MP3416GQH-Z Frequently Asked Questions (FAQs)

  • The MP3416GQH-Z can handle a maximum input voltage of 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the output capacitor is placed close to the IC and the feedback pin is connected to the output capacitor.
  • The MP3416GQH-Z can provide a maximum output current of 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
  • The output voltage can be adjusted by using a resistive divider network between the output and the feedback pin. The ratio of the resistors determines the output voltage, and the datasheet provides a formula to calculate the resistor values.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
