A good PCB layout is crucial for the MP3430GQ-Z. Ensure a solid ground plane, keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Avoid vias and narrow traces near the switching node.
Select an inductor with a high saturation current, low DCR, and a suitable inductance value (e.g., 1-10 μH). Consider the inductor's physical size, core material, and operating frequency. The MP3430GQ-Z datasheet provides guidance on inductor selection.
The MP3430GQ-Z has an absolute maximum input voltage rating of 24V. However, the recommended operating input voltage range is 4.5V to 18V. Exceeding the maximum rating can damage the IC.
The output voltage can be adjusted by changing the resistor divider network (R1 and R2) connected to the FB pin. Use the formula provided in the datasheet to calculate the required resistor values for the desired output voltage.
The EN (enable) pin is used to turn the converter on or off. Connect the EN pin to a logic high (e.g., Vin) to enable the converter, or connect it to a logic low (e.g., GND) to disable it. You can also use the EN pin to implement power sequencing or UVLO (undervoltage lockout) functionality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP3430GQ-Z Overview

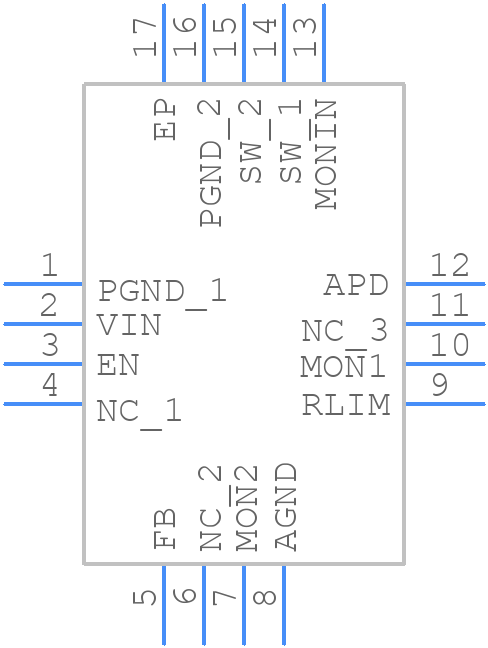

Use the download button to access the MP3430GQ-Z schematic symbol, PCB footprint, and 3D model.
