MP34DT04TR-C1 - STMicroelectronics

Description: MEMS audio sensor omnidirectional digital microphone HCLGA-4LD , 1.6V ~ 3.6V , 2.4 MHz , -40°C to +85°C

Download MP34DT04TR-C1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

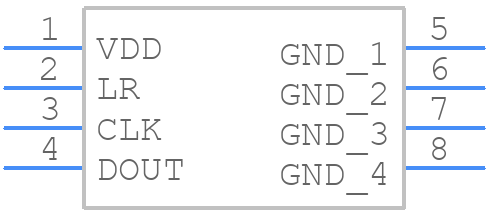

MP34DT04TR-C1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MP34DT04TR-C1 - STMicroelectronics PCB footprint - Other - Other - HCLGA (3x4 x1.095 mm) 4LD
click to zoom
3D Models
MP34DT04TR-C1 - STMicroelectronics - 3D model - Other - HCLGA (3x4 x1.095 mm) 4LD
click to zoom

MP34DT04TR-C1 Details

  • Manufacturer Part Number:

    MP34DT04TR-C1

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-4

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B4

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Seated Height-Max:

    1.195 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.85 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

MP34DT04TR-C1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5012, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The MP34DT04TR-C1 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
  • The MP34DT04TR-C1 is rated for operation from -40°C to 125°C, but it's essential to consider the specific application's temperature requirements and ensure proper thermal management to prevent overheating.
  • The MP34DT04TR-C1 is designed to withstand moderate vibration levels, but it's crucial to evaluate the specific vibration requirements of your application and consider additional mechanical support or vibration damping measures if necessary.
  • Calibration procedures for the MP34DT04TR-C1 are provided in the datasheet and application notes. It's essential to follow these procedures carefully to ensure accurate measurements. Additionally, consider using calibration software or tools provided by STMicroelectronics or third-party vendors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP34DT04TR-C1 Overview

Use the download button to access the MP34DT04TR-C1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP34D, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
