MP3V5004GP - NXP

Description: Board Mount Pressure Sensors SOP W/ TOP PORT 3V

Download MP3V5004GP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

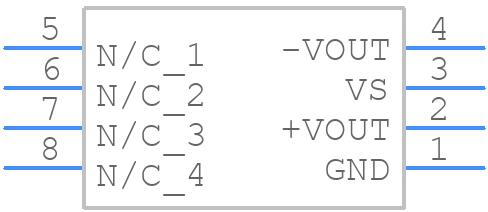

MP3V5004GP - NXP - PCB symbol
click to zoom
PCB Footprints

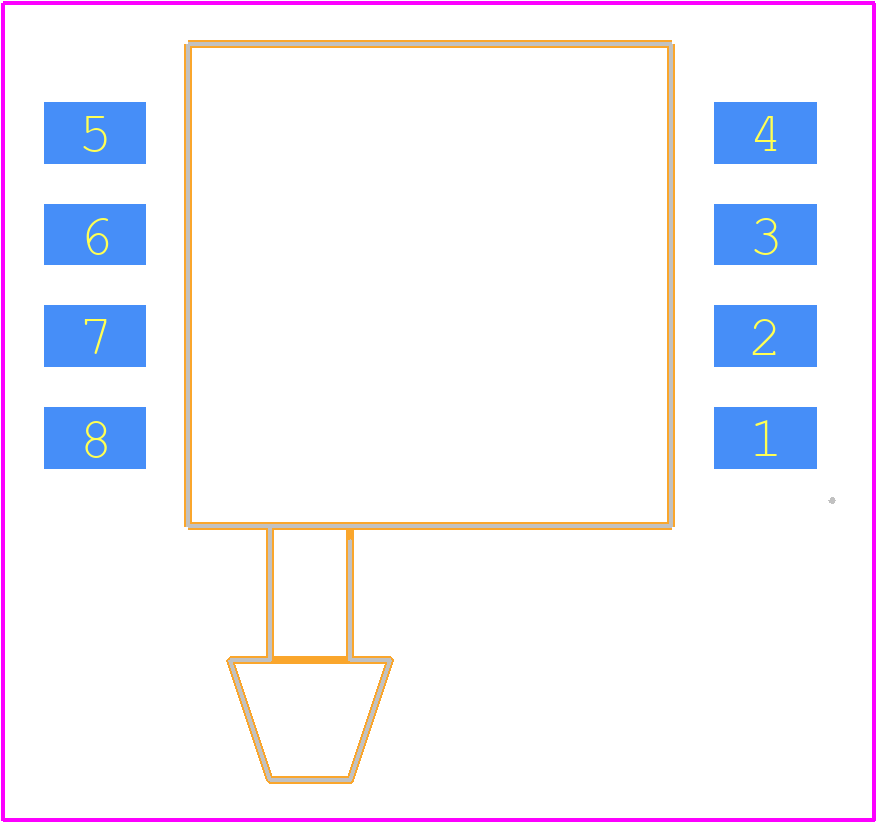

MP3V5004GP - NXP PCB footprint - Other - Other - MP3V5004GP-2
click to zoom
3D Models
MP3V5004GP - NXP - 3D model - Other - MP3V5004GP-2
click to zoom

MP3V5004GP Details

  • Manufacturer Part Number:

    MP3V5004GP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SMT, SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION

  • Body Breadth:

    12.06 mm

  • Body Height:

    7.36 mm

  • Body Length or Diameter:

    12.06 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    5.9V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    85 °C

  • Output Range:

    0.60-3V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    BARBED

  • Pressure Range-Max:

    0.5684 Psi

  • Pressure Sensing Mode:

    GAGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MP3V5004GP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Ensure the PCB layout is optimized for EMC, and consider using a shielded cable for the output.
  • The recommended input voltage range is 4.5V to 5.5V. Operating outside this range may affect performance, efficiency, or reliability.
  • Use a heat sink or thermal pad on the exposed pad (EP) of the device. Ensure good airflow around the device, and consider using a thermal interface material (TIM) for improved heat transfer.
  • The maximum output current is 4A per channel. However, the device can deliver higher currents for short durations. Consult the datasheet for thermal derating and output current limitations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP3V5004GP Overview

Use the download button to access the MP3V5004GP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP3V5, or try a keyword search, such as Pressure Sensors
